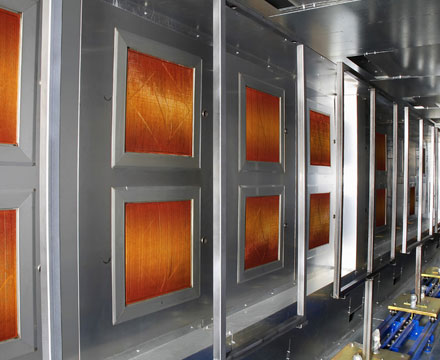

Industrial infrared radiant unit: Air Boost range

This medium-power density infrared radiant unit is highly energy efficient. It is specially suited to drying aluminium and metal parts. As well as conserving energy, it allows for more compact installation of industrial ovens. It average curing temperature is between 60°C and 250°C. It combines all the benefits of the Sunkiss Mataherm Thermoreactor®: safety, time-saving, air recyling and cleanliness.

puce-14CONTACT US

Icone rond pdf DOWNLOAD OUR DOCUMENTATION

Thermoreactor® infrared RX 500

Power : 11 kW
Weight : 37 Kg
Dimensions : 590 x 750 x 425 mm
Power suplly : Naturat Gas
Gas pulse settings : 50-150 mbar
Electrical preheating : 10 min
Wall fixing : 556 x 706 x 100 mm

Thermoswitch security
Radiant surface : 470 x 470 mm
Master unit for max. 3 auxiliary unit:
– Oxygenation fan
– Starter and main gas solenoid valves
– Electrical strip connection

Thermoreactor® infrared RM 325

Power : 4 kW
Weight : 32 Kg
Dimensions : 590 x 750 x 425 mm
Power supply : Natural Gas
Gas pulse settings : 50-150 mbar
Electrical preheating : 10 min
Wall fixing : 556 x 706 x 100 mm

Thermoswitch security
Radiant suface : Ø 310 mm
Master unit for max. 3 auxiliary units :
– Oxygenation fan
– Starter and main gas solenoid valves
– Electrical strip connection.

Thermoreacteur® infrared RX COIL

Power : 33 kW
Weight : 70 Kg
Dimensions : 2000 x 800 x 550 mm
Power suplly : Naturat Gas
Gas pulse settings : 50-150 mbar

Electrical preheating : 10 min
Wall fixing : 1782 x 706 x 100 mm
Thermoswitch security
Radiant surface : 1570 x 470 mm

Industrial applications of Thermoreactor® SUNKISS MATHERM

A

pplications for industrial drying ovens of the Airless range.

Applications for industrial heating ovens
Any aluminium and metal parts
